Handtmann 130mm

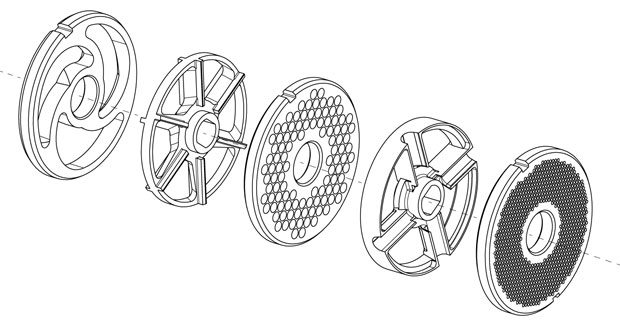

Click on an area of the drawing to jump to the corresponding part listings.

Knives	OEM #	Speco #	Add to Quote
E 130mm Double Cut 6-Arm Solid Knife w/ Ring	859695	105545	− +
E 130mm Double Cut 8-Arm Solid Knife w/ Ring	859694	107629	− +
E 130mm Double Cut 10-Arm Solid Knife w/ Ring		108471	− +
E 130mm DC BC Sorting Knife	893179	105852	− +
Plates	OEM #	Speco #	Add to Quote
E 130mm Triumph 1.5mm Holes	859697	106934	− +
E 130mm Triumph CODED 1.5mm Holes	895108	112439	− +
E 130mm Triumph 2.0mm Holes	859698	106591	− +
E 130mm Triumph CODED 2.0mm Holes	895109	112470	− +
E 130mm Triumph 2.5mm Holes	859699	107225	− +
E 130mm Triumph CODED 2.5mm Holes	895110	112431	− +
E 130mm Triumph 2.75mm Holes		106592	− +
E 130mm Triumph 3.0mm Holes	859700	106431	− +
E 130mm Triumph CODED 3.0mm Holes	859111	111954	− +
E 130mm Triumph 3.5mm Holes	859701	106072	− +
E 130mm Triumph CODED 3.5mm Holes	895112	112342	− +
E 130mm Triumph 4.0mm Holes	859702	106384	− +
E 130mm Triumph CODED 4.0mm Holes	895113	111960	− +
E 130mm Triumph 4.5mm Holes	859703	106656	− +
E 130mm Triumph CODED 4.5mm Holes	895114	112513	− +
E 130mm Triumph 5.0mm Holes	859704	106842	− +
E 130mm Triumph CODED 5.0mm Holes	895155	112565	− +
E 130mm Triumph 6.0mm Holes	859705	106627	− +
E 130mm Triumph CODED 6.0mm Holes	895116	112436	− +
E 130mm Triumph 7.8mm Holes	859706	106890	− +
E 130mm Triumph CODED 7.8mm Holes	895117	112309	− +
E 130mm Triumph 9.0mm Holes		107443	− +
E 130mm Triumph 10.0mm Holes	859707	105917	− +
E 130mm Triumph 11.0mm Holes		107426	− +
E 130mm Triumph 12.0mm Holes		107446	− +
E 130mm Triumph 13.0mm Holes	859708	105353	− +
E 130mm Triumph 15.0mm Holes		108251	− +
E 130mm Triumph 16.0mm Holes		102737	− +
E 130mm Triumph 18.0mm Holes		107806	− +
E 130mm Triumph 22.0mm Holes		107821	− +
E 130mm Triumph 25.0mm Holes		108257	− +
E 130mm Triumph 30.0mm Holes		104529	− +
E 130mm Triumph 2 Hole Tapered		109250	− +
E 130mm Triumph 3 Kidney Holes		103195	− +
E 130mm 3 Hole Pre-Cut	895127	112355	− +
Spacers	OEM #	Speco #	Add to Quote
E 130mm 10mm Spacer	895083	104249	− +
E 130mm 28mm Spacer	895119	102079	− +
E 130mm 38mm Spacer	92567	103163	− +
E 130mm 55mm Spacer		105385	− +
E 130mm Support Star		110715	− +
